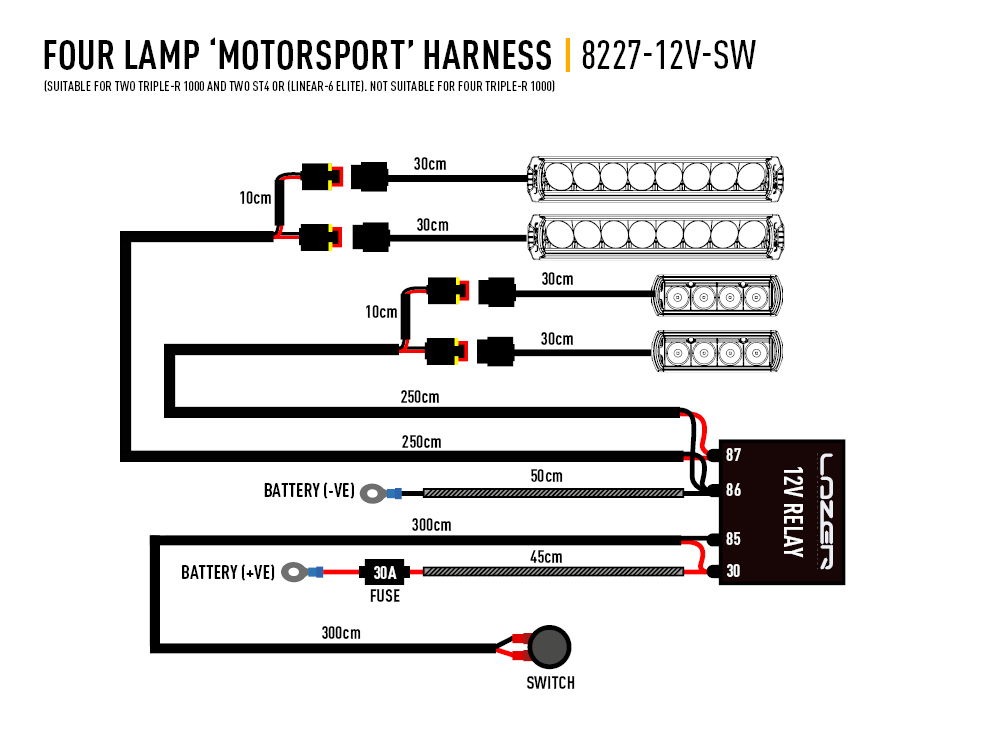

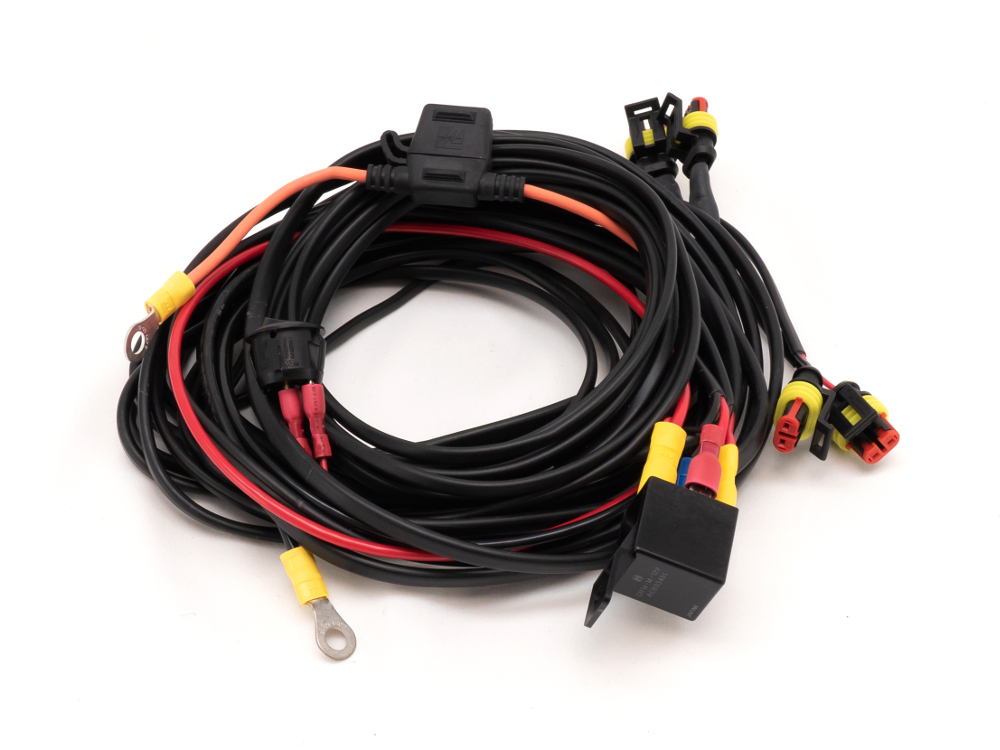

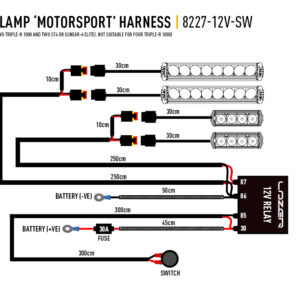

The ideal solution for wiring four E-mark approved Lazer high performance LED spotlights, most commonly within motorsport applications, where lights without additional position light function are being used. The setup is quick, easy, and reliable with 2-pin superseal connection and no configuration procedures. The kit features a 12V relay, 30A fuse, a battery terminal at one end, and 2.5m of flex on the lamp cables, and allows for the operation of Lazer products via an on/off switch to be located inside your vehicle.

All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring into your vehicle system.

Compatible with:
ST Evolution (All Products)
Triple-R 750 Elite (Gen2)
Triple-R 850 Elite (Gen2)
Triple-R 1000 Elite (Gen2)
Linear-6 (Std / Elite)
Linear-12 (Std / Elite)
Linear-18 (Std / Elite)

Product Features

• Four-Lamp Wiring Kit for Lazer E-mark approved driving lights (not with PL function)
• 2.5m cable lengths
• Includes 12V relay and 30 amp fuse
• 2-pin Superseal connections
• Allows for operation via an on/off switch
